Cilley Covered Bridge

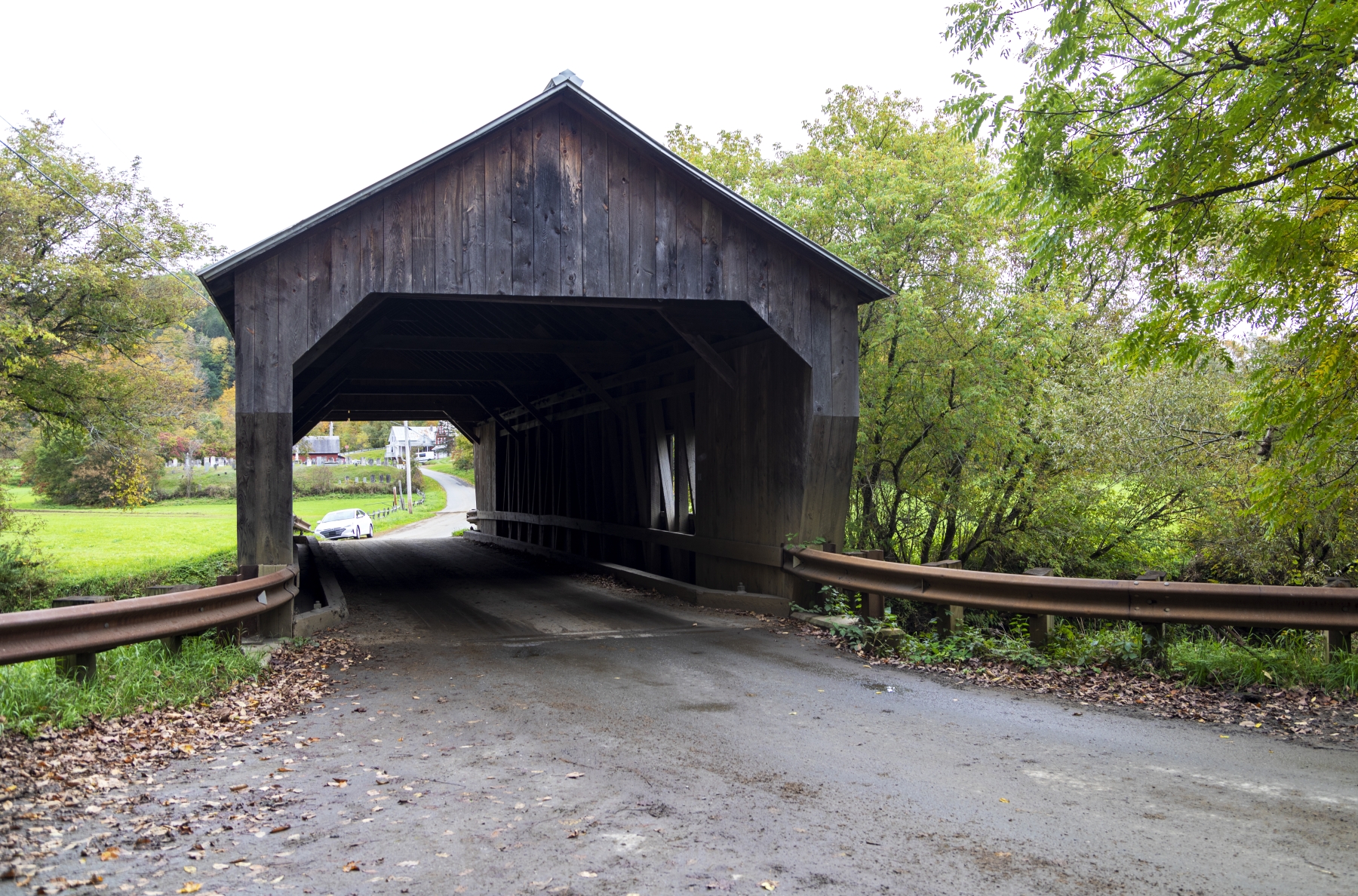

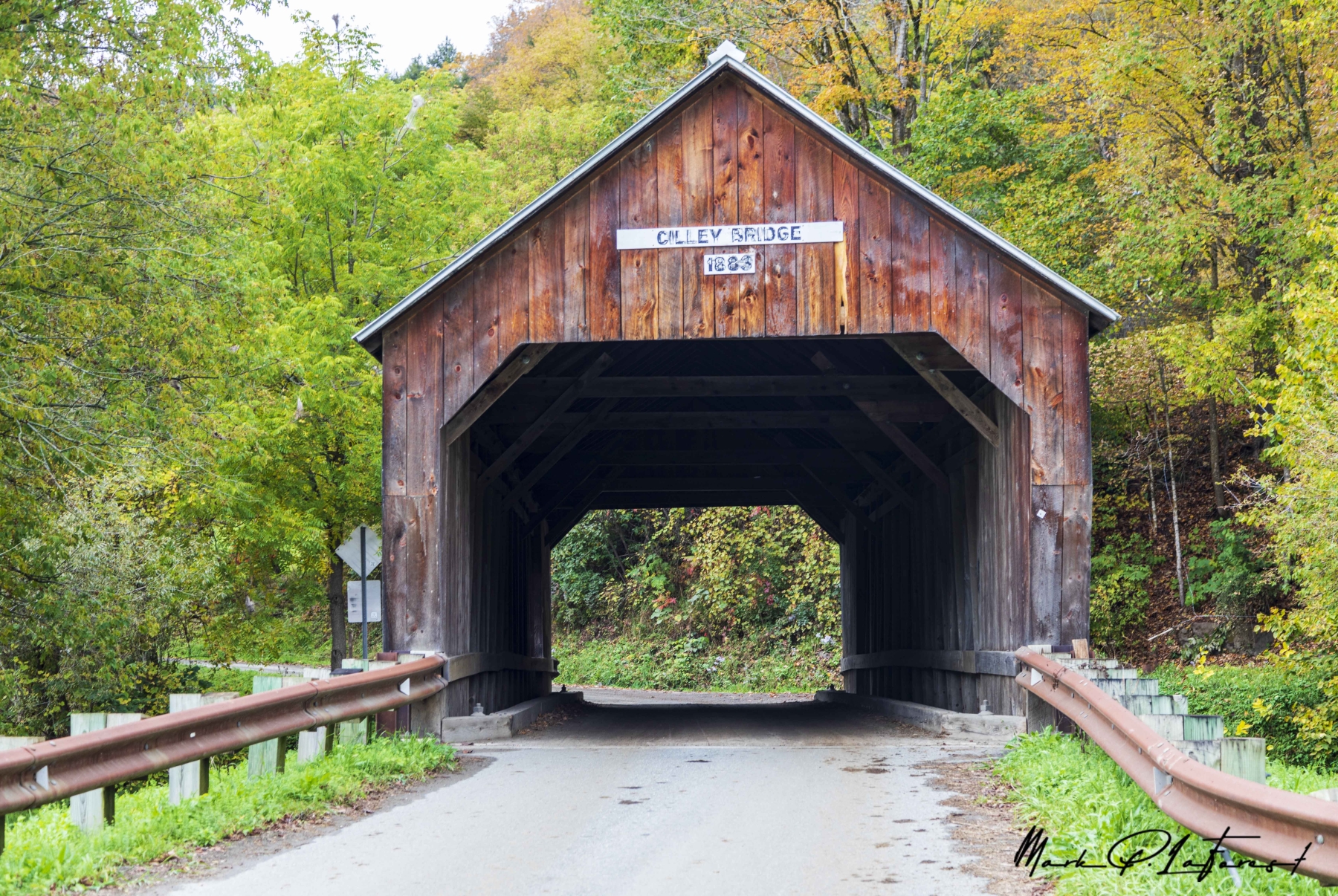

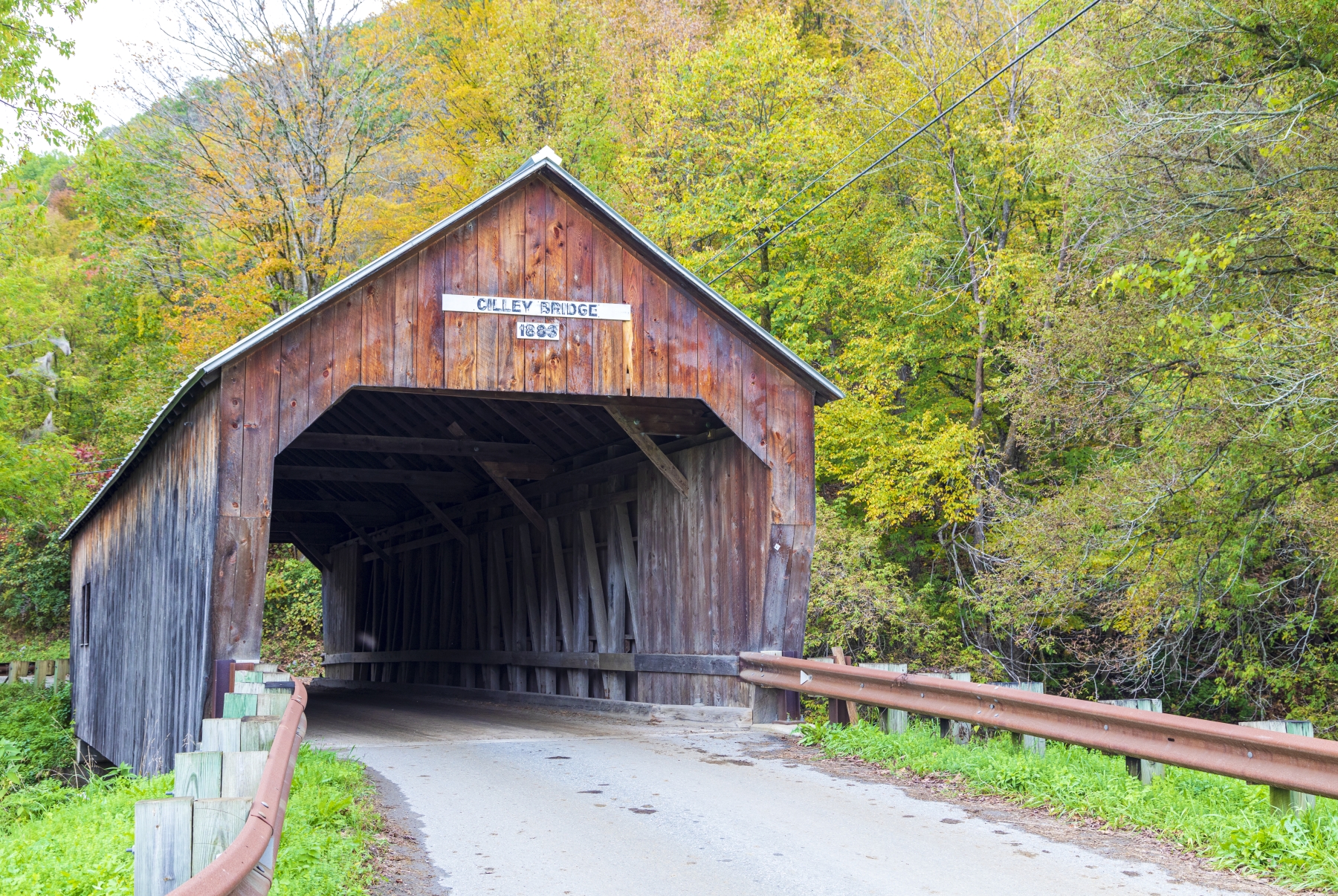

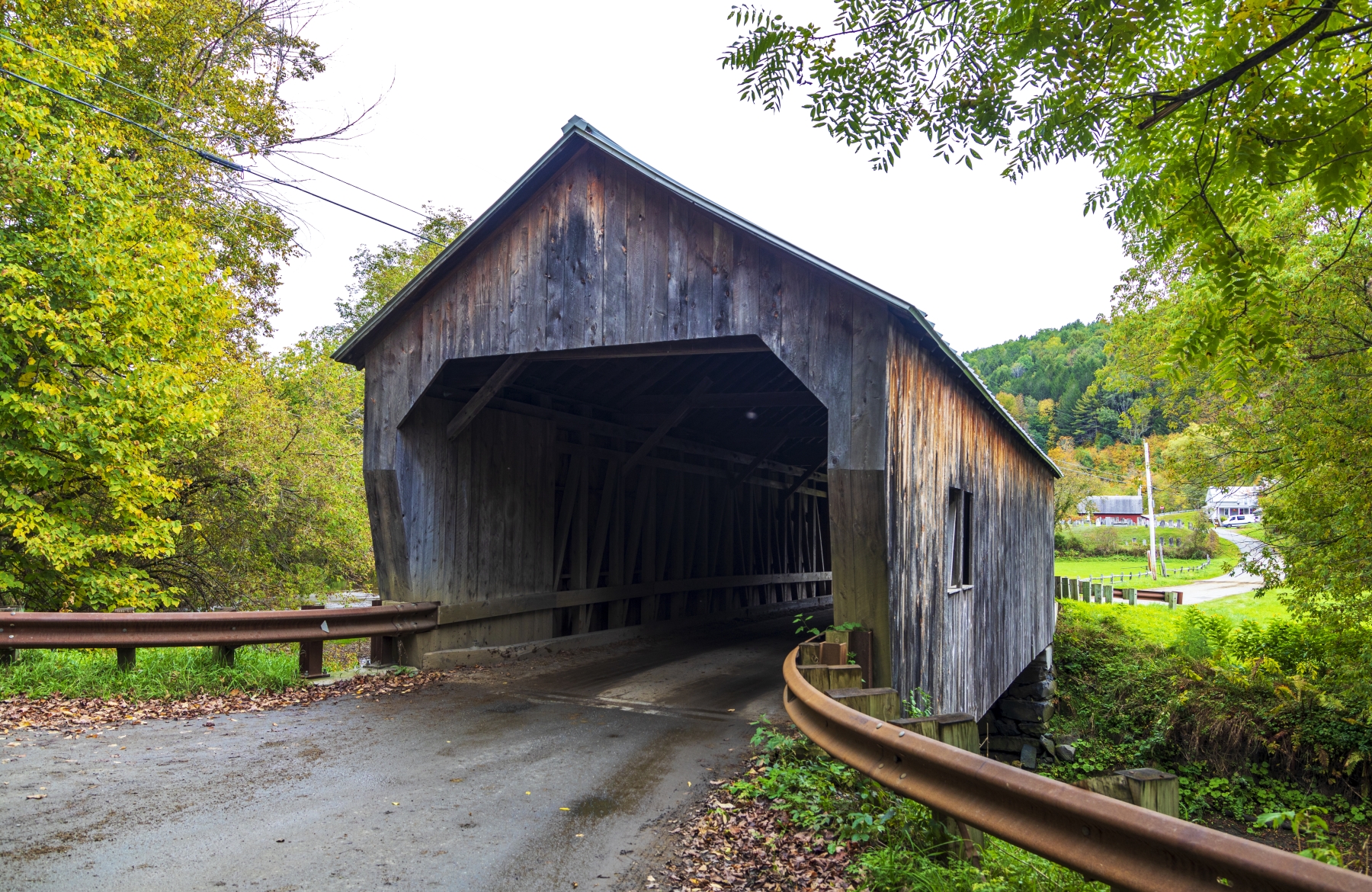

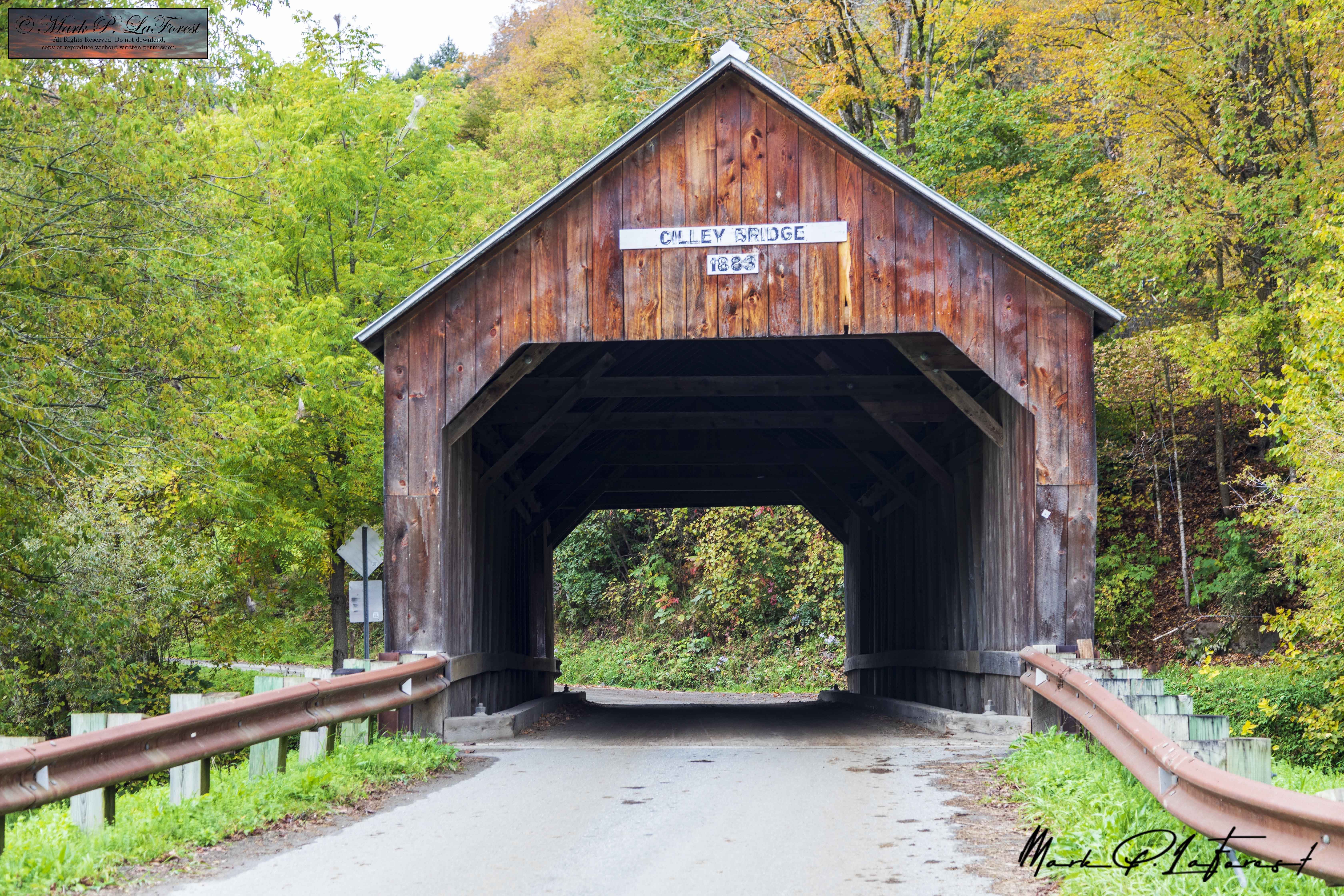

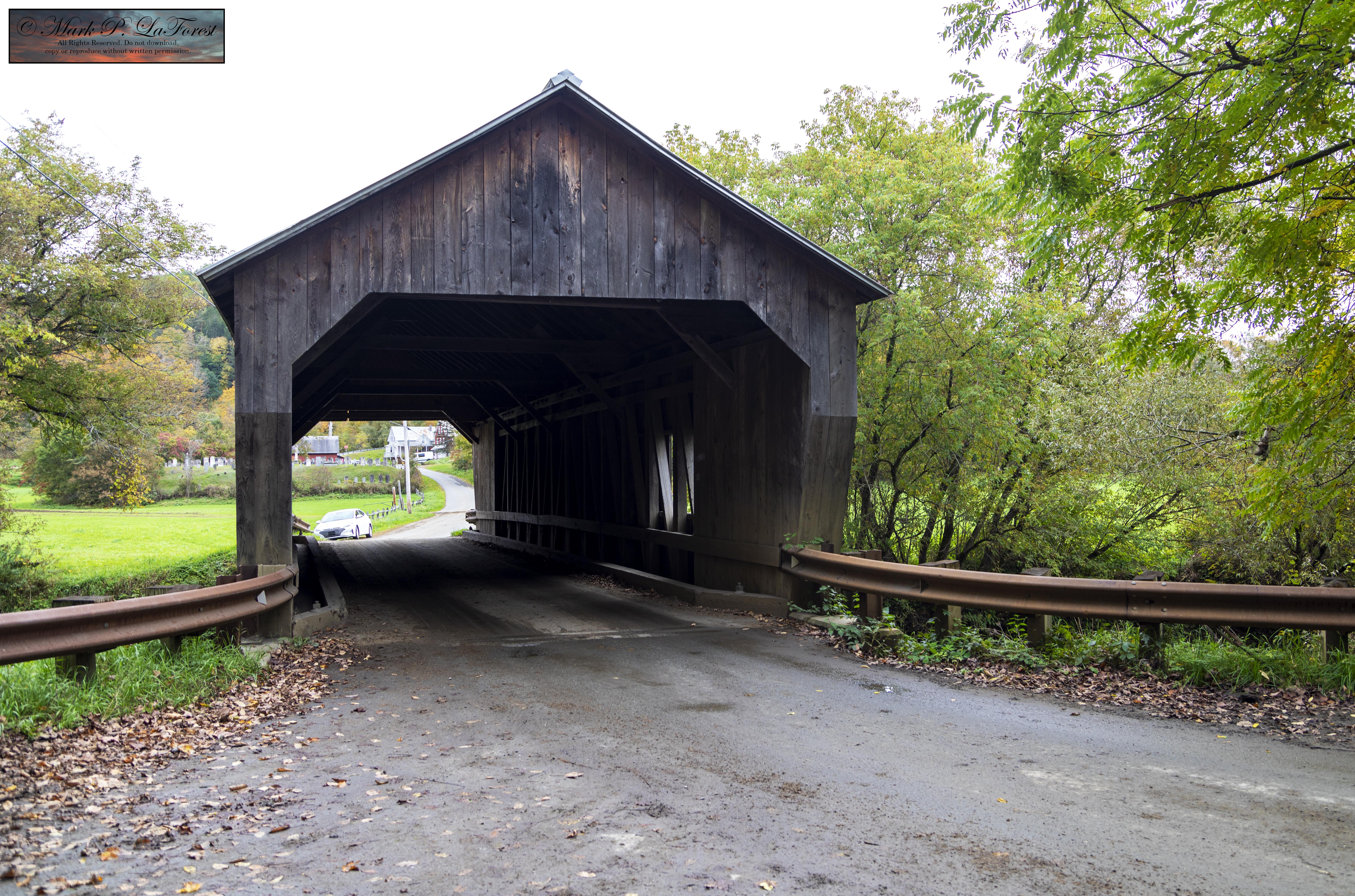

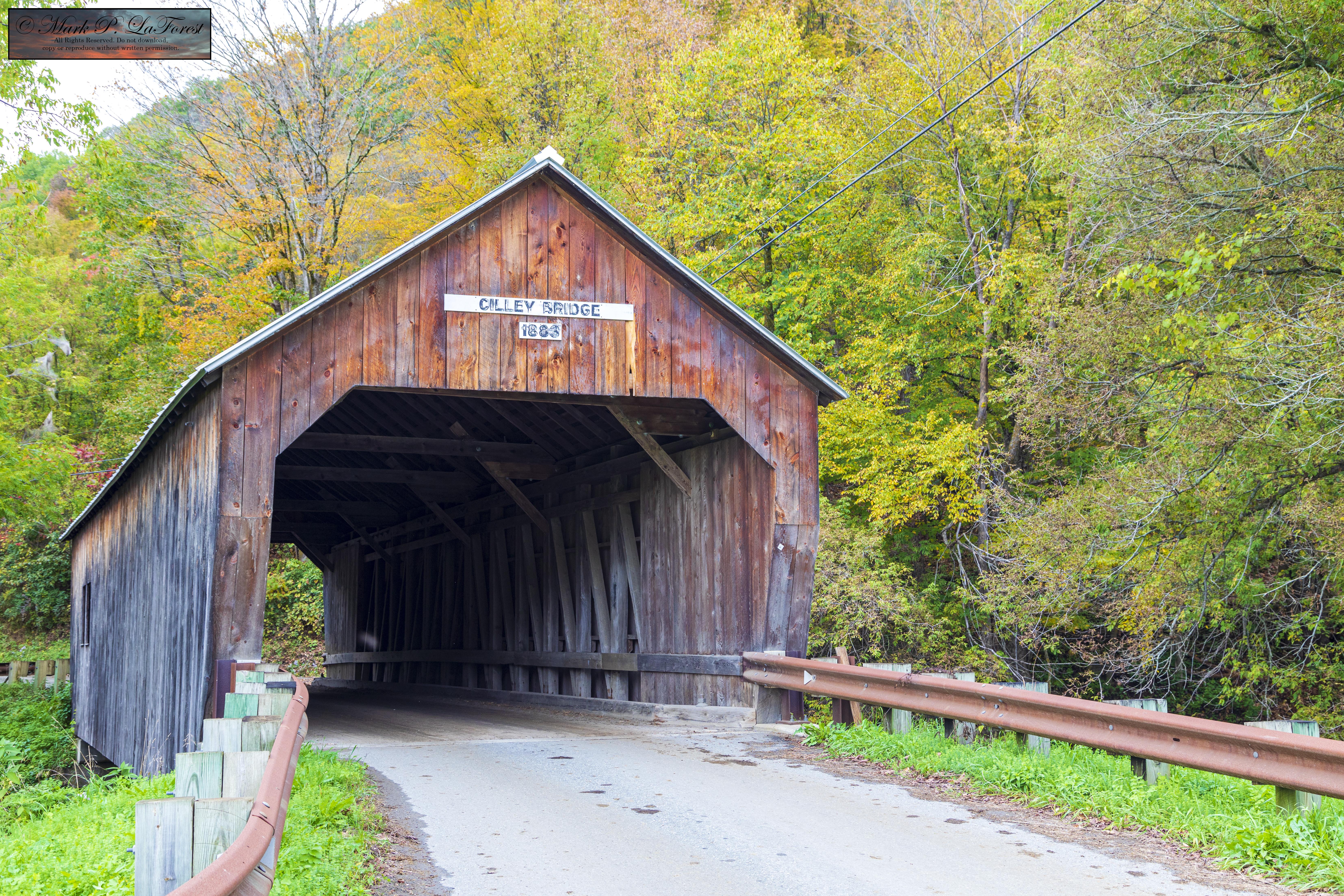

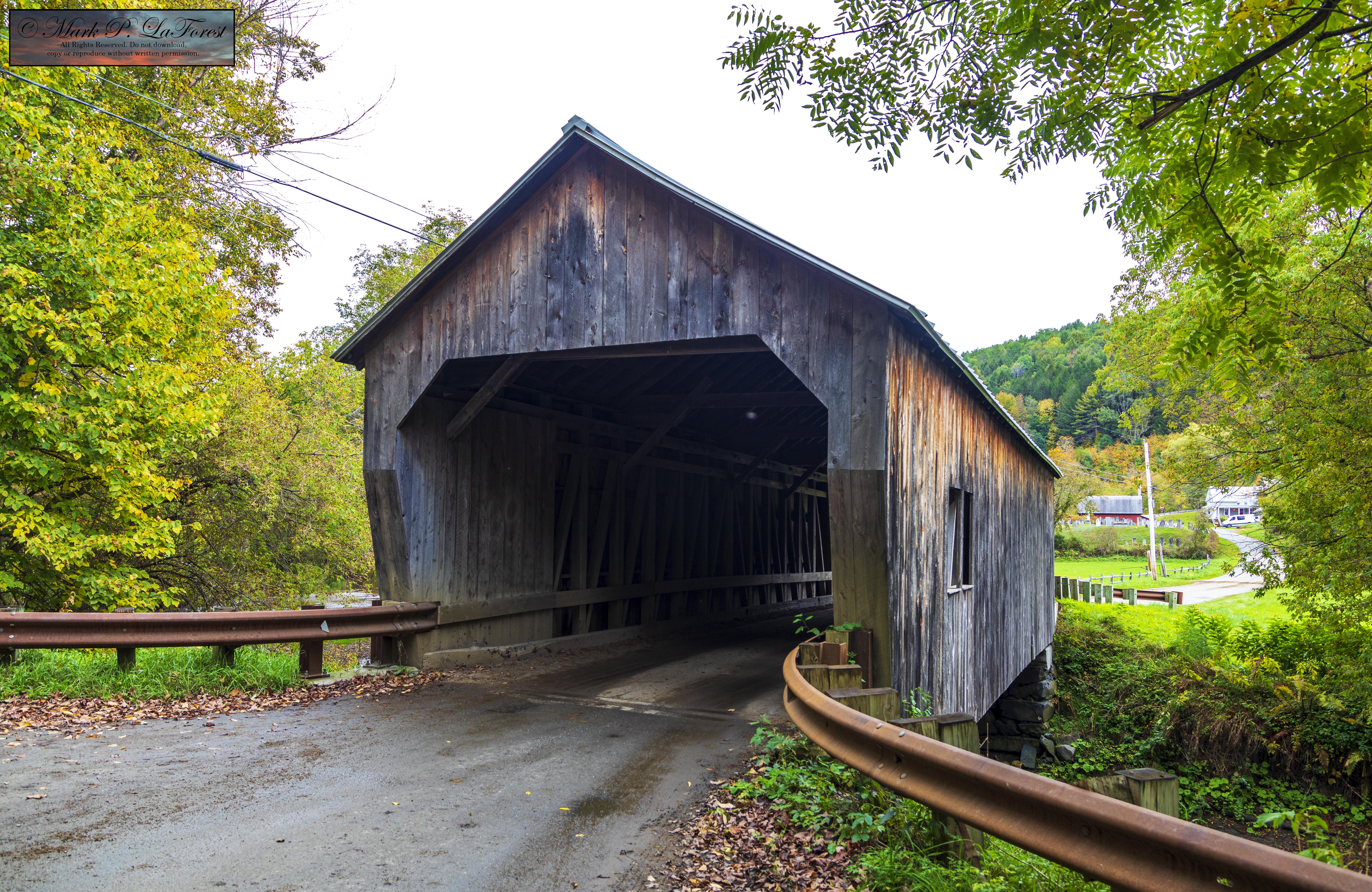

The Cilley Covered Bridge stands in a rural area about 1 mile (1.6 km) south of the central village of Tunbridge. It carries Howe Lane, a side loop off Vermont Route 110, across the First Branch White River. It is a single-span king-post truss structure, 66 feet (20 m) long and 19 feet (5.8 m) wide, with a roadbed 16 feet (4.9 m) wide (one lane). The bridge is set on abutments of stone, one of which has been faced in concrete, and is covered in vertical board siding and a metal roof. The south side of the bridge has two square window holes, which improve visibility due to a sharp turn in the road at one end. The trusses are set at a skew, giving the bridge the shape of a parallelogram. The portals are square, and the exterior sheathing extends around to the ends of the trusses on the interior.
The bridge was built in 1883 and has been little altered since then. It is one of six bridges in a 7-mile (11 km) stretch of the First Branch White River, representing one of the highest concentrations of covered bridges in the state.
